CoralVue HYDROS Control 4 Aquarium Controller Starter Pack

Experience total control with the HYDROS Control 4 Starter Pack-- A kit including everything you need to control and monitor a healthy aquarium!

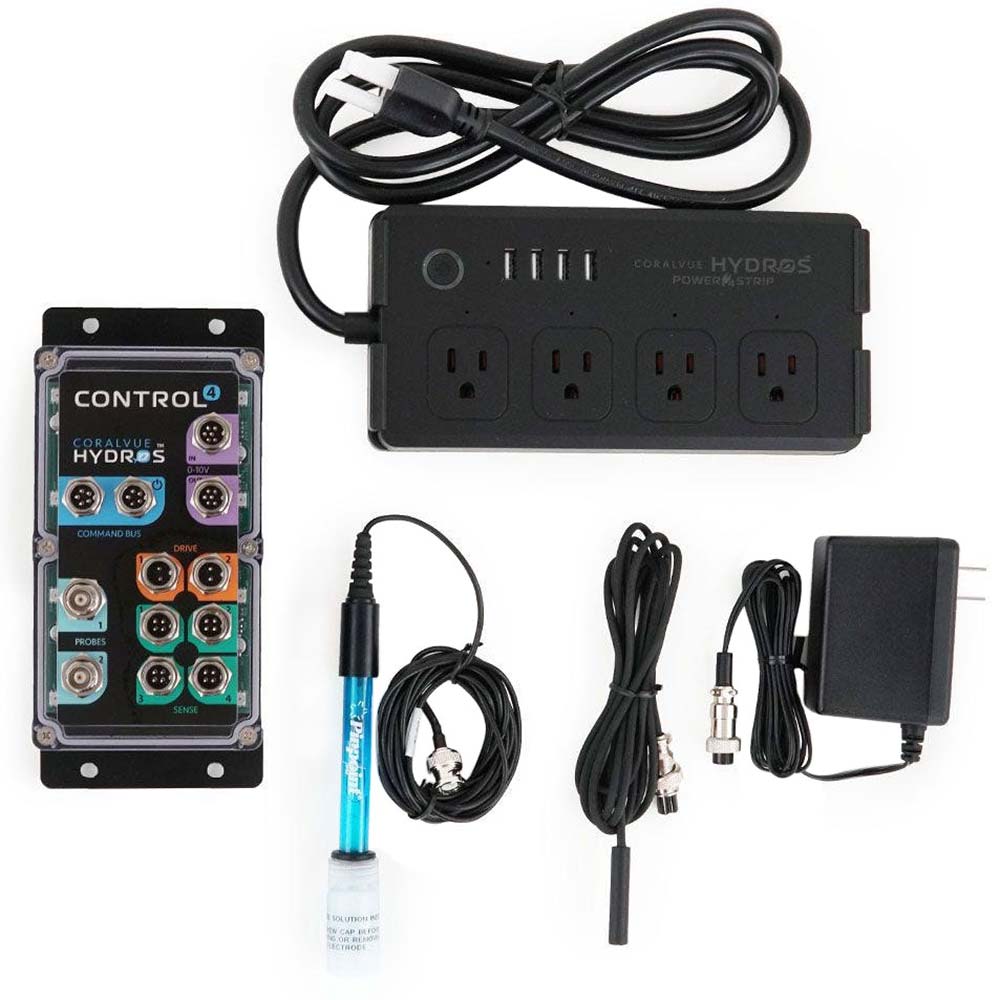

What`s Included:

• (1x) Control 4 Unit
• (1x) Power Supply
• (1x) 4-Outlet WiFi AC Power Strip
• (1x) Temperature Probe
• (1x) pH Probe & Calibration Solutions
• HYDROS App

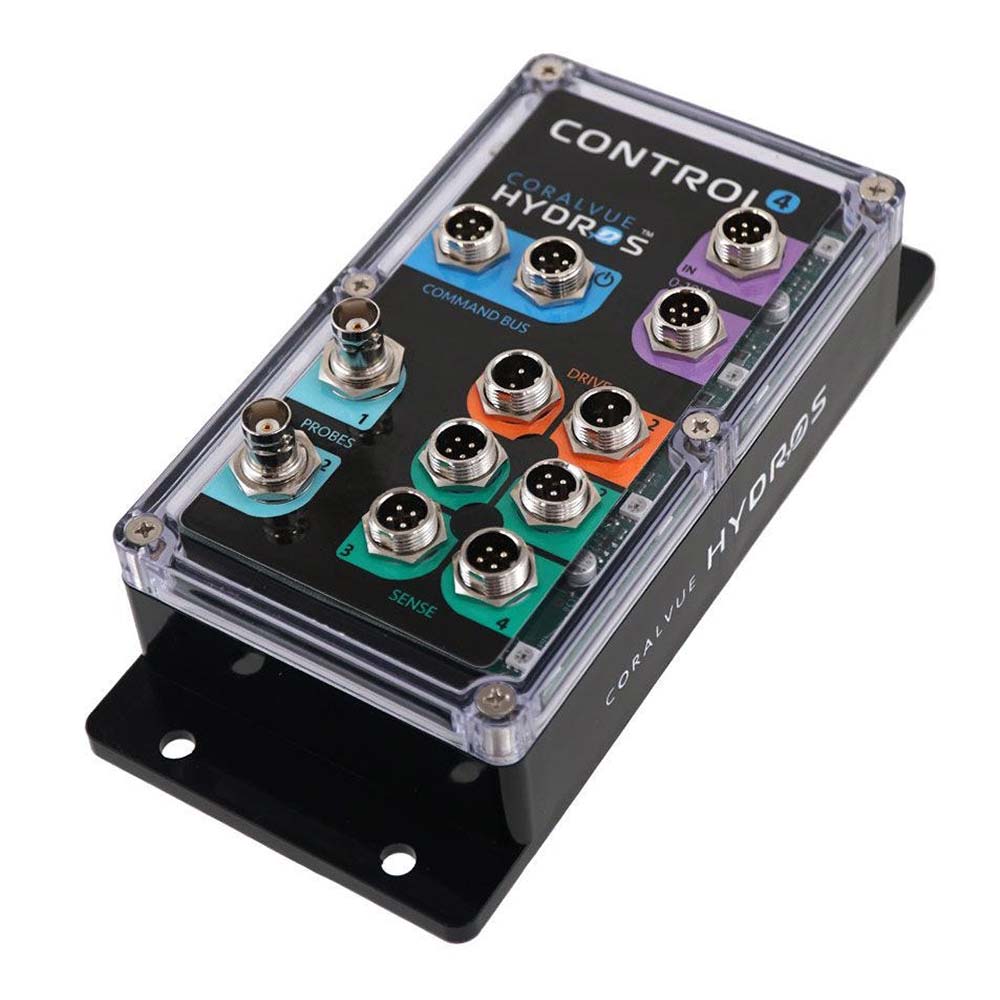

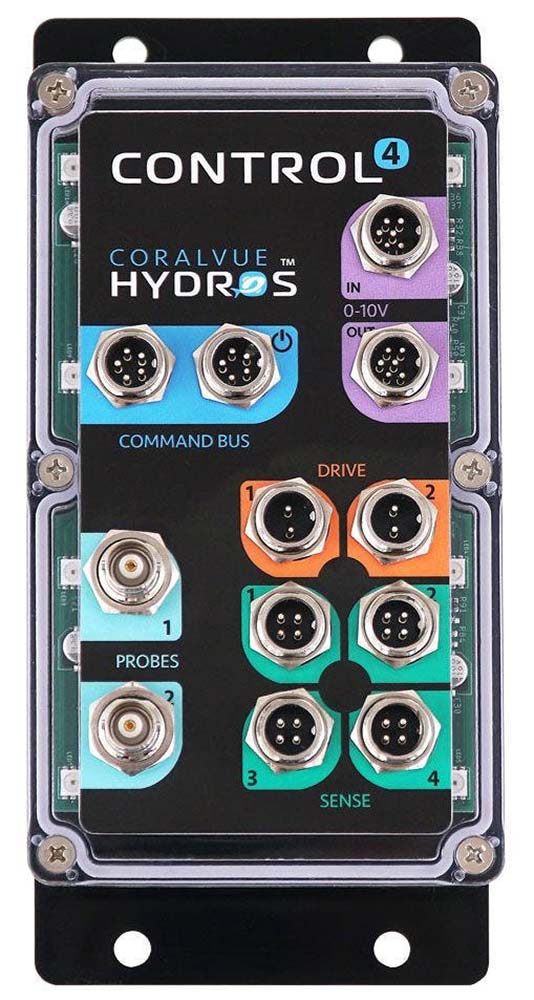

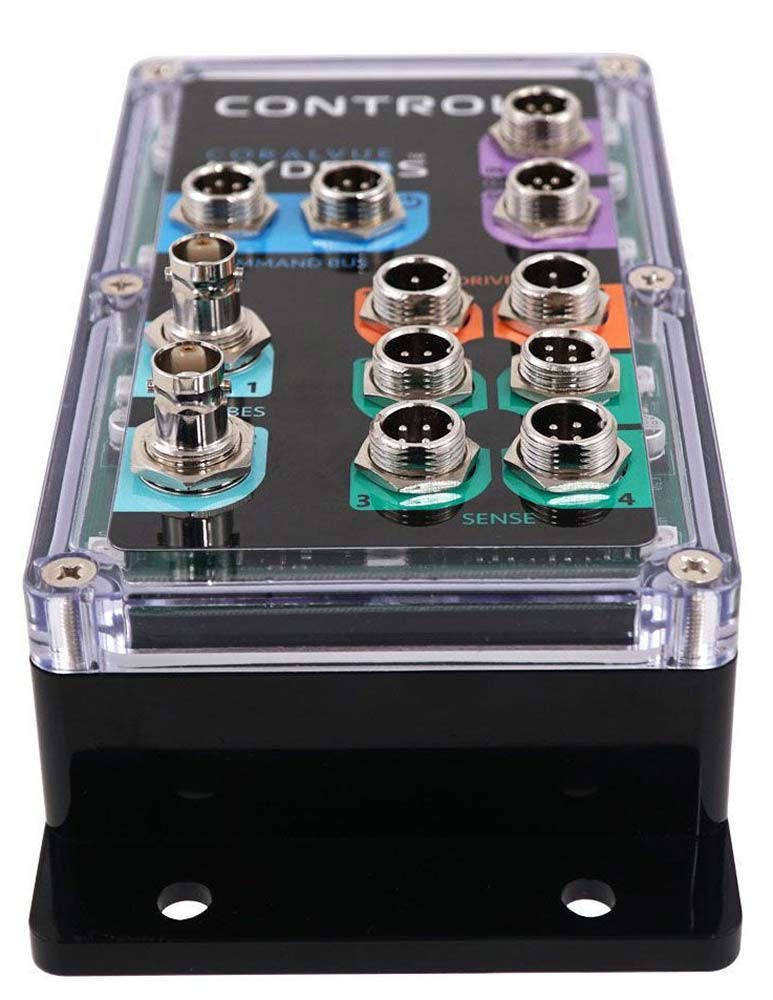

HYDROS Control 4

The HYDROS Control 4 is a powerful and robust aquarium controller with the ability to monitor temperature, pH, ORP, and water level while controlling pumps, timers, level sensors, and more! It can be used as a standalone controller for saltwater aquariums, freshwater tanks, pond applications, or even added to other HYDROS Controls to build a more extensive system. The Control 4 operates on a HYDROS Safety Net and is rated IP-65 to keep your equipment and aquatic life alive and thriving.

Versatile and Expandable without Extra Modules

Every HYDROS product is a smart device with its own CPU and scheduling capabilities, so you can use any HYDROS device by itself or connect multiple devices as part of a larger automated aquarium system with NO single point of communication failure.

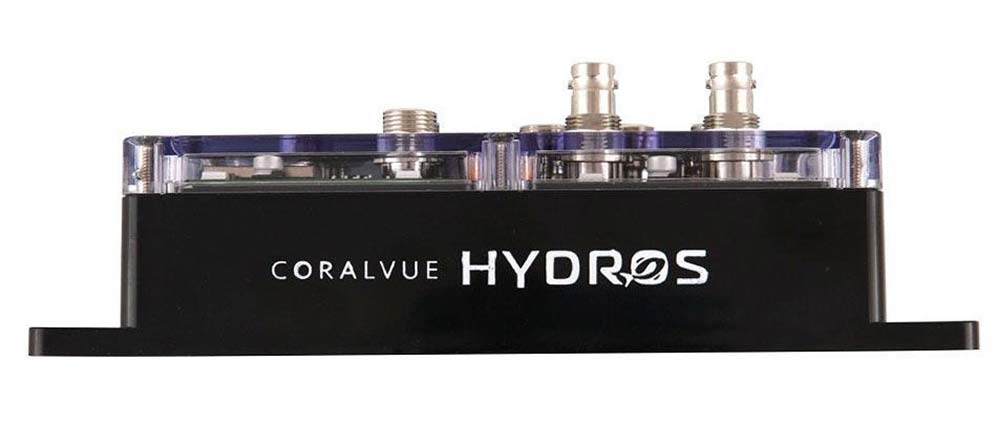

IP-65 Rated-- Splash Proof, Dust Proof, and Secure Connection

The HYDROS devices have been built to function in the harsh environment of a marine aquarium. The IP-65 rated HYDROS enclosure, and aircraft-style connectors ensure long term reliability in the face of splashes and corrosive salt spray.

Feature Overview

• Control your HYDROS device(s) from anywhere using the HYDROS cloud-based app
• Monitor and control your HYDROS device(s) locally through WiFi
• A fast dual-core 32-bit processor that allows control decisions to be made within each device
• Internal health monitoring to report voltages, currents, CPU status, and the internal temperature of each device
• HYDROS Command Bus connections to transfer data and power to devices

(4x) Sense Ports

The Sense Port is a generic input port that can accept data from numerous different types of sensors. The HYDROS Control 4 includes four Sense Ports, which currently support:

• Temperature probes
• Optical level sensors (single and dual)
• Capacitive non-contact liquid level sensors
• Rope leak detectors
• Point leak detectors
• Flow rate sensors
• Magnetic switches
• Push-button switches

(2x) Drive Ports

The two Drive Ports provide switched 12V DC power for running small lights, motors, pumps, fans, and other accessories. The exact current being supplied by each port is continuously monitored by the Control, so if a motor or pump quits drawing current or draws too much, you will be immediately notified. The Drive Ports currently support:

• Auto Top-Off (ATO) pumps
• Cooling fans
• Cabinet LED lights
• Solenoids to control reverse osmosis systems

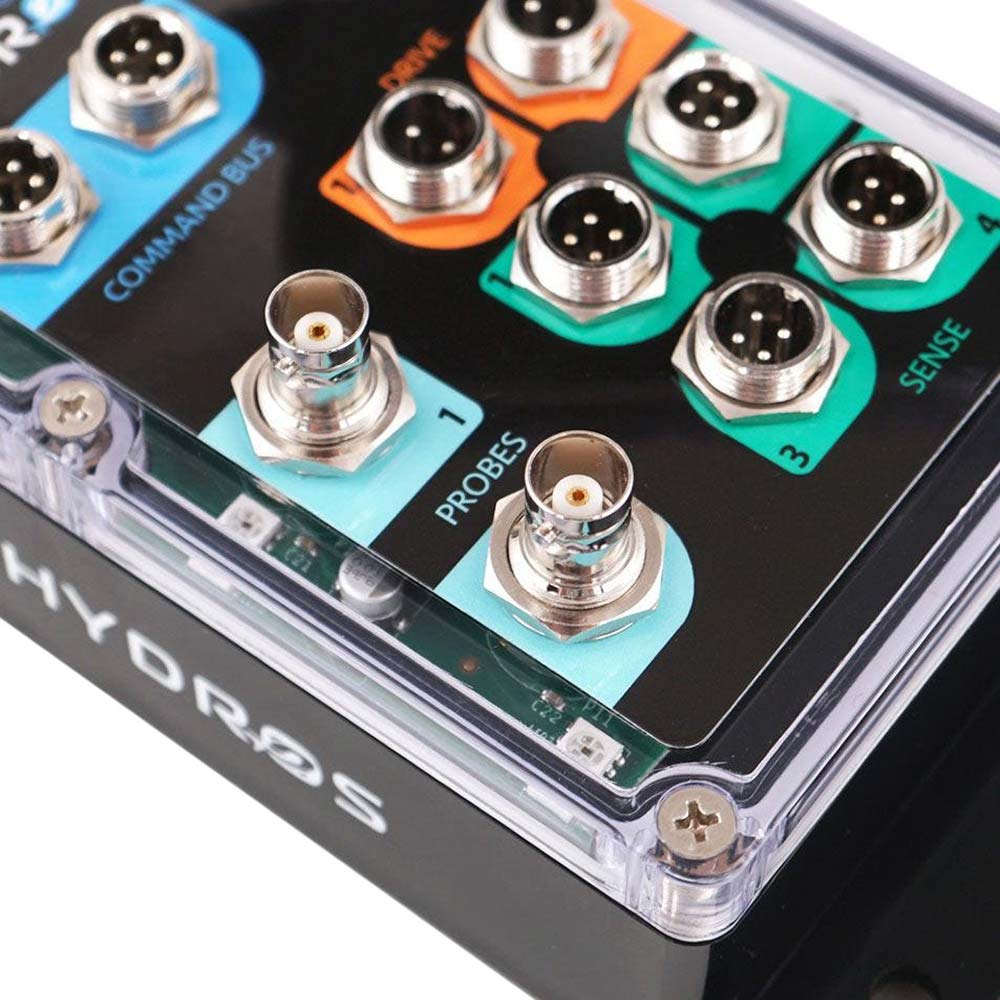

(2x) Probe Ports

The two Probe Ports feature circuitry based on an ultra-high-quality input chip specifically designed for ORP and pH probes. Each pH input provides digital galvanic isolation from the rest of the system. Galvanic isolation prevents interference with other accessories connected to the system like motors and pumps. Digital Galvanic isolation preserves the accuracy of the measurement by converting the signal to a digital domain before crossing the isolation threshold.

0-10V Ports

The HYDROS Control 4 has 0-10V I/O (input and output) ports that allow it to control and receive commands from other HYDROS devices and accessories from other brands. A legacy automation system can provide input via the 0-10V Ports. They can control variable speed pumps and can also be used to monitor simple switch closures, like push buttons or float switches.

(2x) Command Bus

The HYDROS Command Bus is used to power the Control as well as communicate with other HYDROS devices for the ultimate failsafe.
